So, I have blown more fuses today than I would like to admit. So I am turning to someone smarter than I. He is what I will say is the current setup of lighting. And what I would like to do with it. In my front ADD Honeybadger bumper I have 2 - Rough Country X5 Light bars on the left and right sides, for simplicity I will call fog lights. On the top of the bumper I have a 40" Rigid Dual row light bar, I will call top bumper light. inside the bumper behind the logo and above the winch is another light bar of some size and type to be determined, for simplicity called bottom bumper light. Under the truck are 4 small square lights of an unknown brand called rock lights. On the ADD Chase rack I have about a 48" Rough Country X5 2 1/2 row light bar called roof lights, and in the ADD Honeybadger rear bumper are 2 Rigid light pods called back-up. All wiring as far as I can tell is still original, and has the attached relay(s). I want to shorten and rewire the lights. My plans are
2 fog/ditch lights, to run off a replacement headlight switch with fog light option.
Top Bumper Light to run off AUX 1
Bottom Bumper Light off AUX 2
The Roof light off AUX 3
The Rock Lights off AUX 4
and the back-up lights wired into the factory back-up wiring.

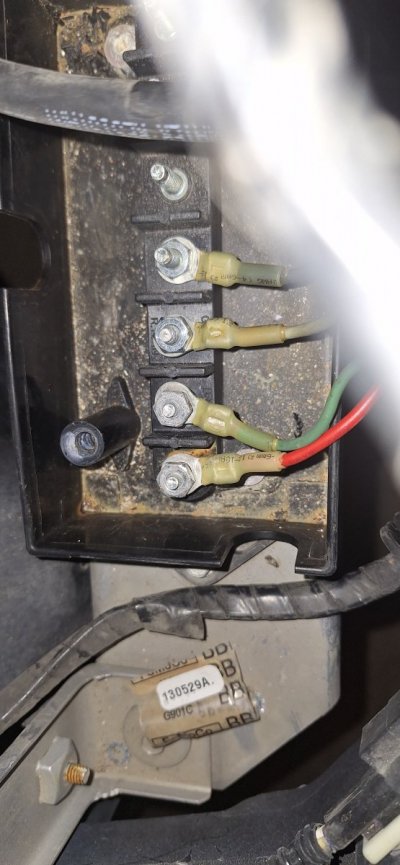

What I can't grasp is where in the world do I wire everything. I have the 4 upfitter wires run into a 7 gang junction block behind the right headlight on the radiator core support. I also have a spot to put all the relays neatly in that area. But for the life of me, I can not picture how I need to wire this up and make it as clean and professional as I can. I start doing one thing and then stop and sit back because I think I am doing it wrong. Attached is what the 7 gang box looks like, bottom wire is AUX to the top AUX 4.
Someone, please help me.......
